HeliosSharp
ReleasedSolar detail, recovered in the browser.
A specialised post-processor for solar astrophotography. Load a stacked frame straight out of AutoStakkert! or Registax and pull out granulation, fibrils and prominences with multi-scale wavelet sharpening. No heavy desktop software, no install, nothing to configure.
Solar detail lives at several scales at once.
Unsharp masking and deconvolution treat the frame as a single scale, which is why they tend to amplify noise before they finish resolving structure. Solar features don't work that way: surface granulation, penumbral fibrils and active regions all sit at different frequencies in the same image.
- Separate the image into three frequency layers and sharpen each independently.
- Contrast-aware thresholding on every layer, so low-contrast background doesn't turn to grain.
- Full artistic control, so you can push fine detail hard without wrecking the limb or the disk.
A complete solar workflow.
Direct TIFF support
Native in-browser decoding of 16-bit .tif and .tiff stacks straight from AutoStakkert! or Registax. No pre-conversion step.

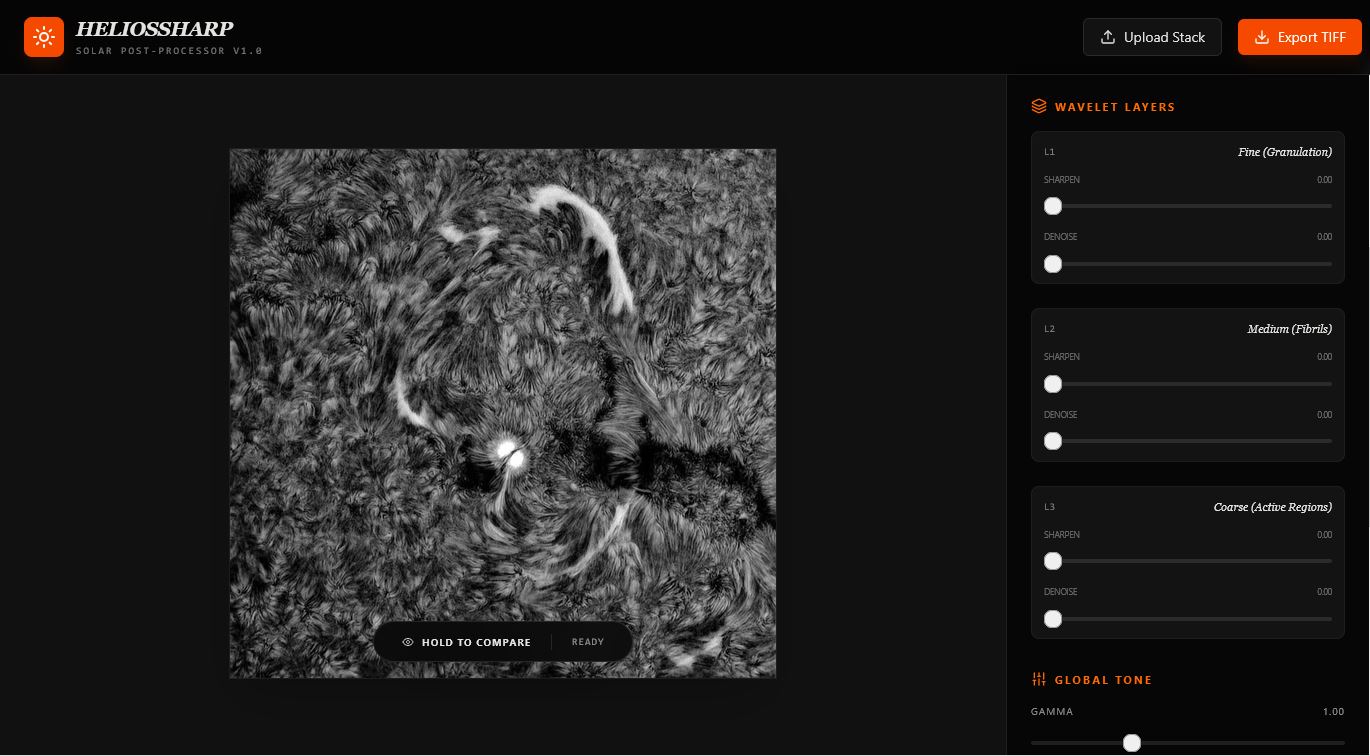

Three-scale wavelet sharpening
Fine for surface granulation, Medium for penumbral structure and fibrils, Coarse for macro-contrast across active regions and the limb.
Adaptive noise reduction
Smooth, contrast-aware thresholding on each wavelet layer prevents grain and noise amplification in low-contrast areas.

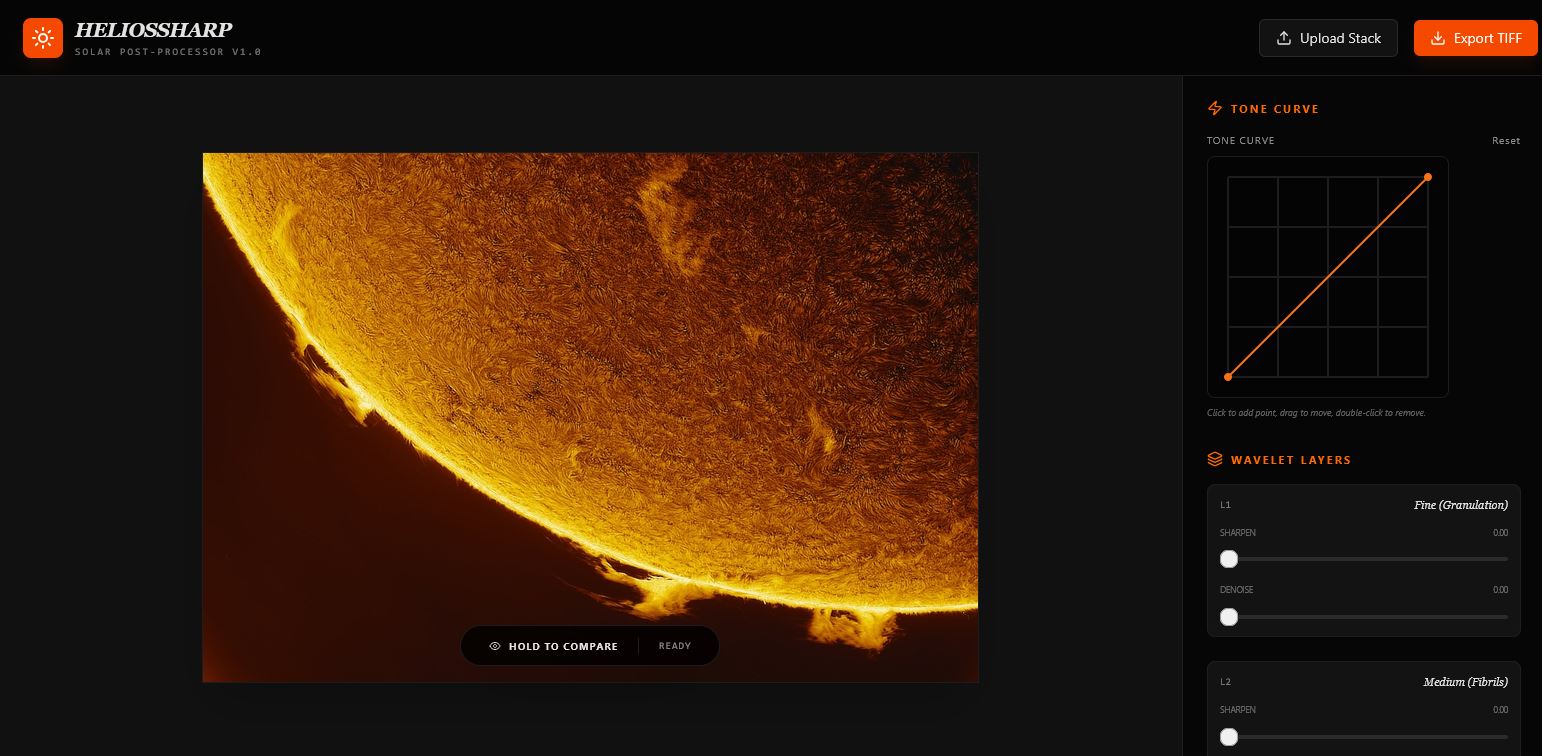

Interactive tone curve
A cubic-spline curve built for stretching high-dynamic-range solar data, lifting faint edge prominences without blowing out the central disk.
False-colour mapping
One-click colourisation presets tuned for H-alpha, Calcium-K and classic solar gold emission.
Hold to compare
Instant side-by-side inspection against the original raw stack, so you can see exactly what your adjustments are doing.

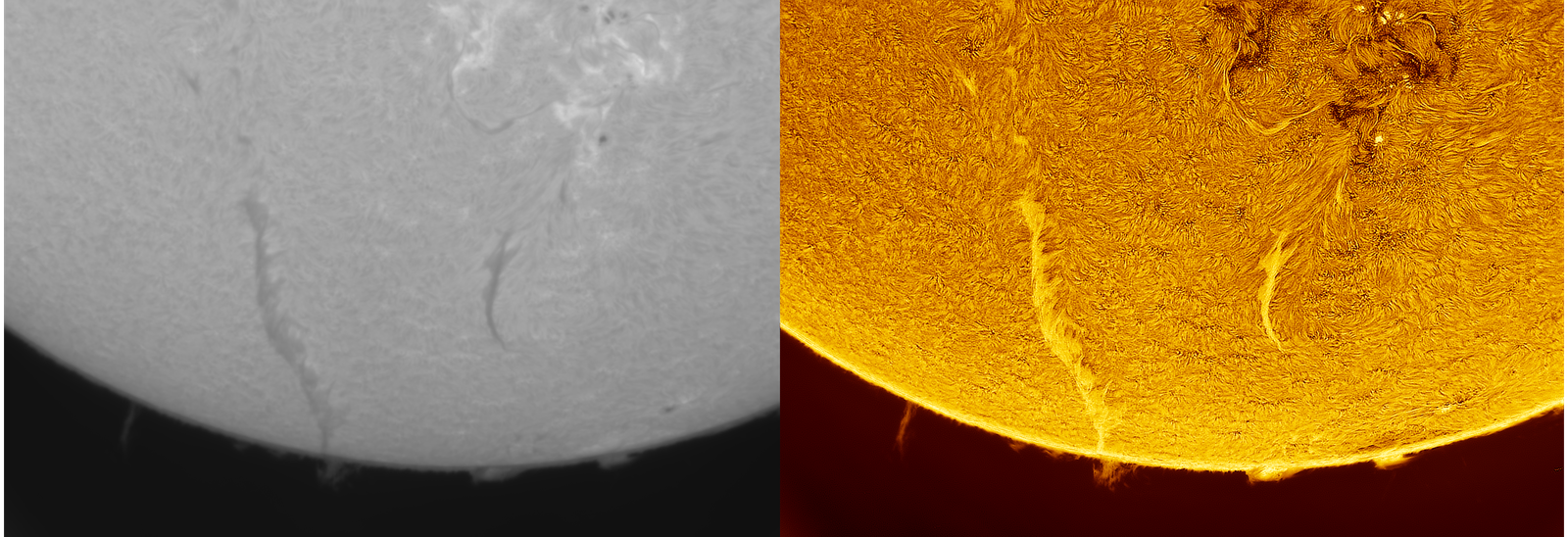

See it working.
Built for solar imagers.
Solar astrophotographers
Imagers running H-alpha scopes or solar wedge setups who want a fast, focused post-processing pass without launching heavy desktop software.
Planetary & deep-sky imagers
Anyone who wants streamlined multi-frequency sharpening in a browser tab rather than a full processing suite.
Educators & outreach
Outreach astronomers processing and displaying high-detail solar images live during public viewing events.
Technical detail.
- Platform
- Web-based. Runs entirely in the browser, with nothing to install.
- Input formats
.tif,.tiff(including 16-bit),.png,.jpg.- Output
- High-resolution PNG or TIFF export.
- Processing
- Multi-frequency wavelet architecture with three independently controlled scales and per-layer adaptive noise thresholding.
- Tone control
- Interactive cubic-spline curve tailored for high-dynamic-range solar data.
- Colour
- False-colour spectral presets for H-alpha, Calcium-K and solar gold.
- Status
- Released and available to use.
More from the studio.
Questions about HeliosSharp?
HeliosSharp is released and runs entirely in the browser. Questions, feature requests, or feedback from your own solar data? We'd like to hear them.
